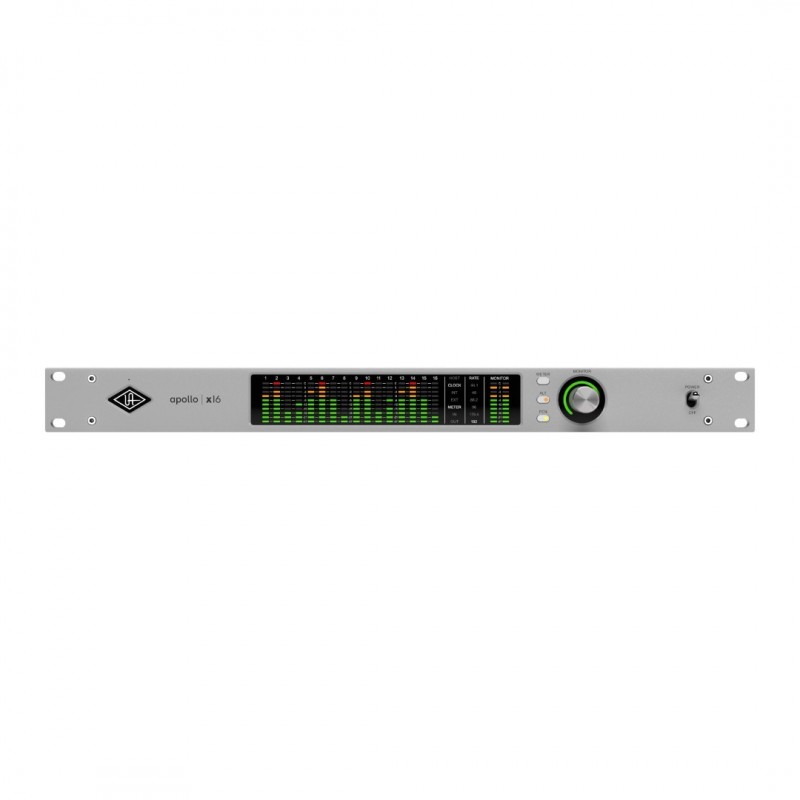

Apollo x16 | Gen 2 - Ultimate+

Marka:

1RackMount 18 x 20 Thunderbolt Ses kartı (2.Nesil) - Ultimate+ Yazılım Paketi ile (6 DSP)

Banka Havalesi/EFT Ödemelerine (%5) İndirim

Universal Audio X16 Gen 2Specs

Key Specs

Channels of I/O	18 Inputs / 20 Outputs
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	No
Analog Audio I/O	2x DB-25 Balanced Line Input 2x XLR 3-Pin Balanced Monitor Output 2x DB-25 Balanced Line Output
Digital Audio I/O	1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output
Host Connection	1x USB-C
Power Requirements	AC/DC Power Adapter (Included)

Signal Processing

Connectivity

Analog Audio I/O	2x DB-25 Balanced Line Input 2x XLR 3-Pin Balanced Monitor Output 2x DB-25 Balanced Line Output
Phantom Power	No
Digital Audio I/O	1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output
Host Connection	1x USB-C
Host Connection Protocol	Thunderbolt 3
USB (Non-Host)	1x USB-C (Device Connection)
Sync I/O	1x BNC Word Clock Input 1x 1/8" / 3.5 mm TS Word Clock Output
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	No

Performance

Frequency Response	Line Inputs: 20 Hz to 20 kHz ±0.04 dB Line Outputs: 20 Hz to 20 kHz ±0.02 dB Monitor Outputs: 20 Hz to 20 kHz ±0.02 dB
Maximum Input Level	Line Inputs: 24 dBu (Reference Level at +4 dBu)
Maximum Output Level	Line Outputs: 24 dBu (Reference Level at +4 dBu) 12.2 dBu (Reference Level at -10 dBv) Monitor Outputs: 24 dBu (Reference Level at +4 dBu) 10 dBV (Reference Level at -10 dBv)
Impedance	Line Inputs: 10 Kilohms Line Outputs: 100 Ohms Word Clock Inputs: 75 Ohms
Dynamic Range	Line Inputs: 124 dBA Line Outputs: 127 dBA Monitor Outputs: 133 dBA
THD+N	Line Inputs: -115 dB / 0.00018% Line Outputs: -123 dB / 0.000068% Monitor Outputs: -129 dB / 0.000037%

Digital Audio

Audio Storage & Playback

Media/Memory Card Slot

Compatibility

OS Compatibility	Windows / macOS
Mobile Device Compatibility	No

Power

Physical

Rackmount Size	1 RU (with Included Hardware)
Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	19 x 12 x 1.74" / 48.3 x 30.5 x 4.42 cm (Chassis Only) 19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions)
Weight	8.5 lb / 3.9 kg

Packaging Info
