Yeni

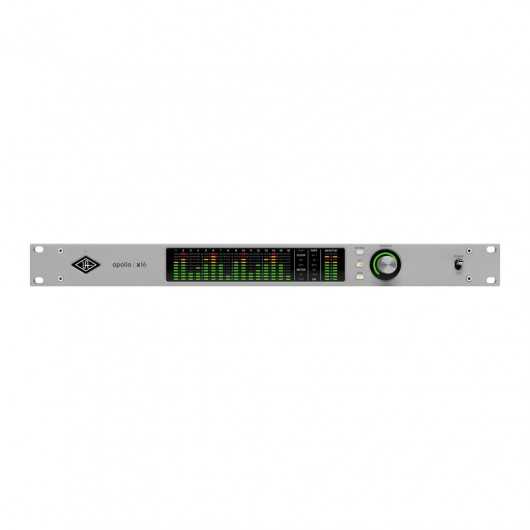

Apollo x16 - Gen 2 - Ultimate Plus

1RackMount 18 x 20 Thunderbolt Ses kartı (2.Nesil) - Ultimate+ Yazılım Paketi ile (6 DSP)

Belirli Referanslar

Fiyat
284.760,00 TL
Vergi dahil
Havale/EFT Fiyatı: 270.522,00 TL
Kazancınız: 14.238,00 TL

Adet
Stokta yeterli ürün yok


Banka Havalesi/EFT Ödemelerine (%2) İndirim

Universal Audio X16 Gen 2Specs

Key Specs
Channels of I/O
18 Inputs / 20 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
No
Analog Audio I/O
2x DB-25 Balanced Line Input
2x XLR 3-Pin Balanced Monitor Output
2x DB-25 Balanced Line Output
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
Host Connection
1x USB-C
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
18 Inputs / 20 Outputs
Built-In DSP
Yes
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
No
Built-In Microphone
Yes
Signal Processing
Pad
No
High-Pass Filter
No
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
2x DB-25 Balanced Line Input
2x XLR 3-Pin Balanced Monitor Output
2x DB-25 Balanced Line Output
Phantom Power
No
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
Host Connection
1x USB-C
Host Connection Protocol
Thunderbolt 3
USB (Non-Host)
1x USB-C (Device Connection)
Sync I/O
1x BNC Word Clock Input
1x 1/8" / 3.5 mm TS Word Clock Output
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
Line Inputs:
20 Hz to 20 kHz ±0.04 dB
Line Outputs:
20 Hz to 20 kHz ±0.02 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB
Maximum Input Level
Line Inputs:
24 dBu (Reference Level at +4 dBu)
Maximum Output Level
Line Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBu (Reference Level at -10 dBv)
Monitor Outputs:
24 dBu (Reference Level at +4 dBu)
10 dBV (Reference Level at -10 dBv)
Impedance
Line Inputs:
10 Kilohms
Line Outputs:
100 Ohms
Word Clock Inputs:
75 Ohms
Dynamic Range
Line Inputs:
124 dBA
Line Outputs:
127 dBA
Monitor Outputs:
133 dBA
THD+N
Line Inputs:
-115 dB / 0.00018%
Line Outputs:
-123 dB / 0.000068%
Monitor Outputs:
-129 dB / 0.000037%
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
1.1 ms at 96 kHz
Sync Sources
AES3, Internal, Word Clock
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Mobile Device Compatibility
No
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter
12 VDC at 6 A
Power Consumption
72 W
30 W (Typical)
Physical
Rackmount Size
1 RU (with Included Hardware)
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
19 x 12 x 1.74" / 48.3 x 30.5 x 4.42 cm (Chassis Only)
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions)
Weight
8.5 lb / 3.9 kg
Packaging Info
Package Weight
16.59 lb
Box Dimensions (LxWxH)
23.6 x 17.3 x 8.7"
